铜螺母型暗杆软闸

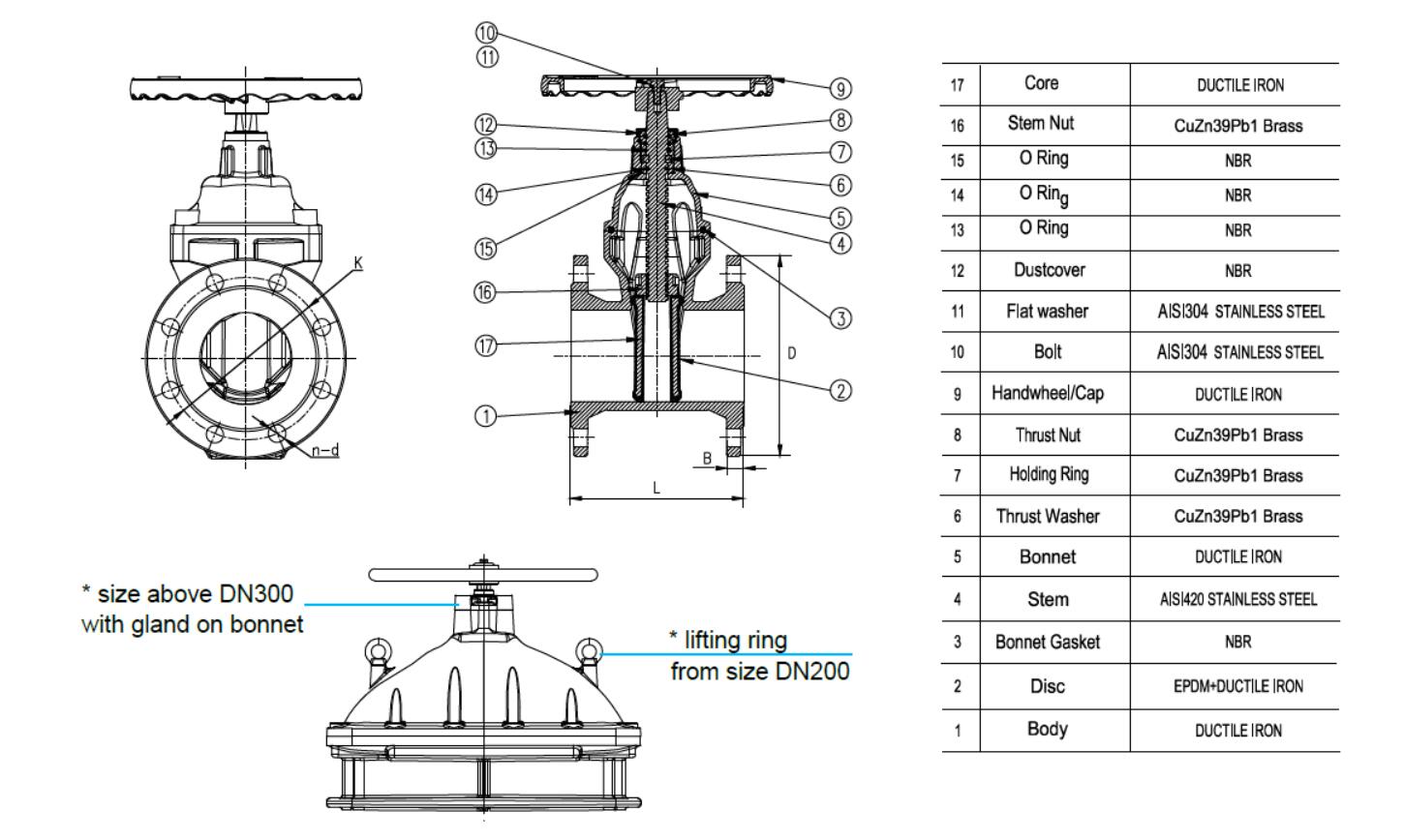

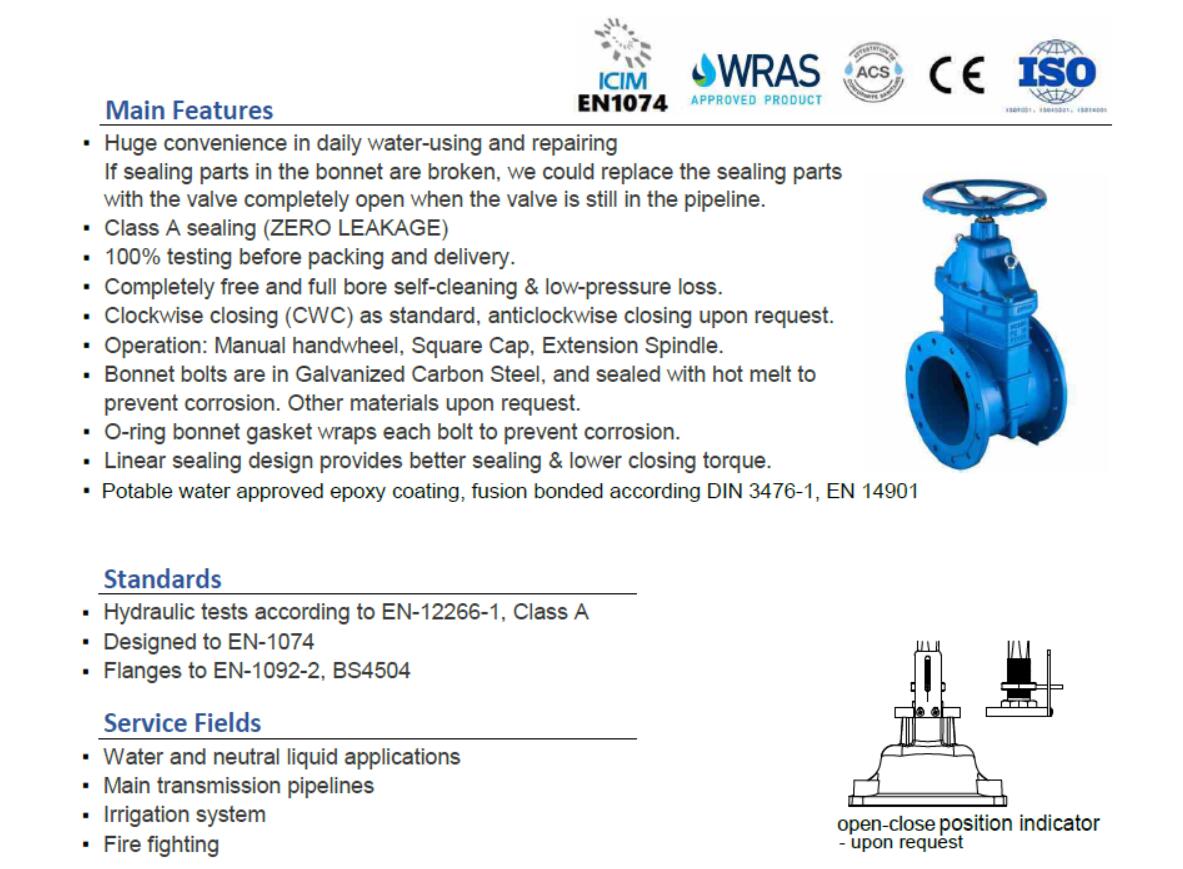

Resilient-Seated Gate Valve

Non-Rising Stem, brass nut type (IV001)

* EN558-1 series 4 (DIN3202-F4, short length)

* EN558-1 series 5 (DIN3202-F5, short length)

* EN558-1 series 13 (BS5163, type-A / SABS 665)

* ASME B16.10, CL125/CL150

Rating: PN10 / PN16 / PN25

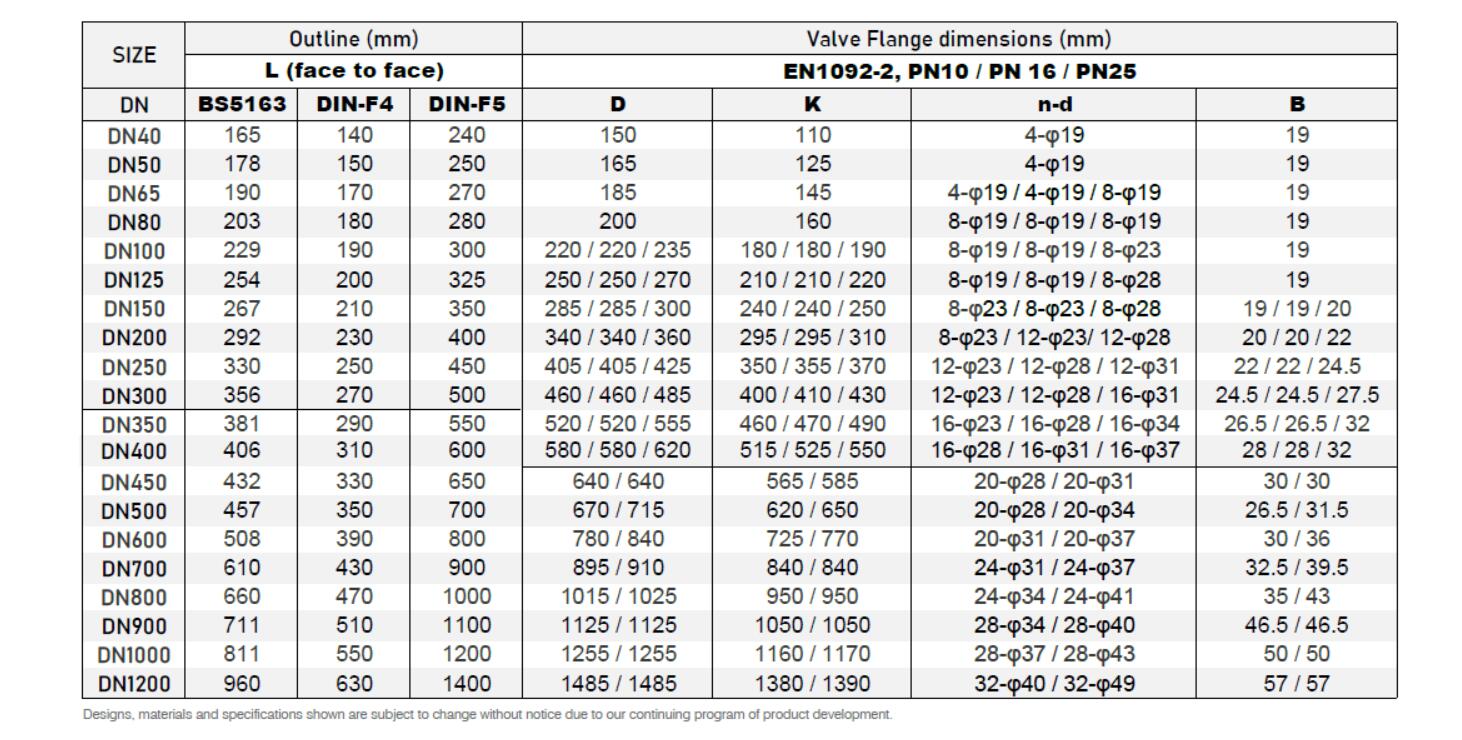

Technical Data
