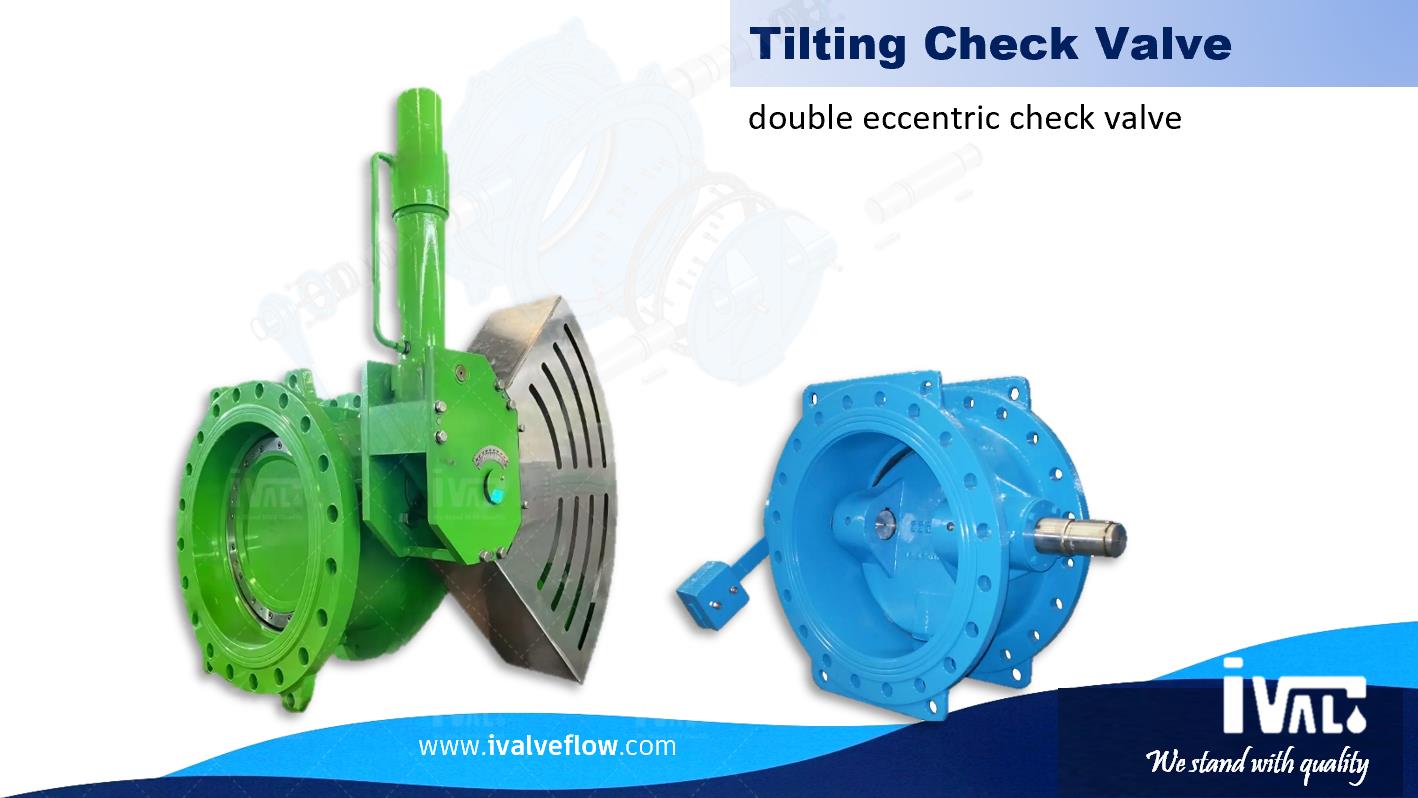

Tilting Disc Check Valve

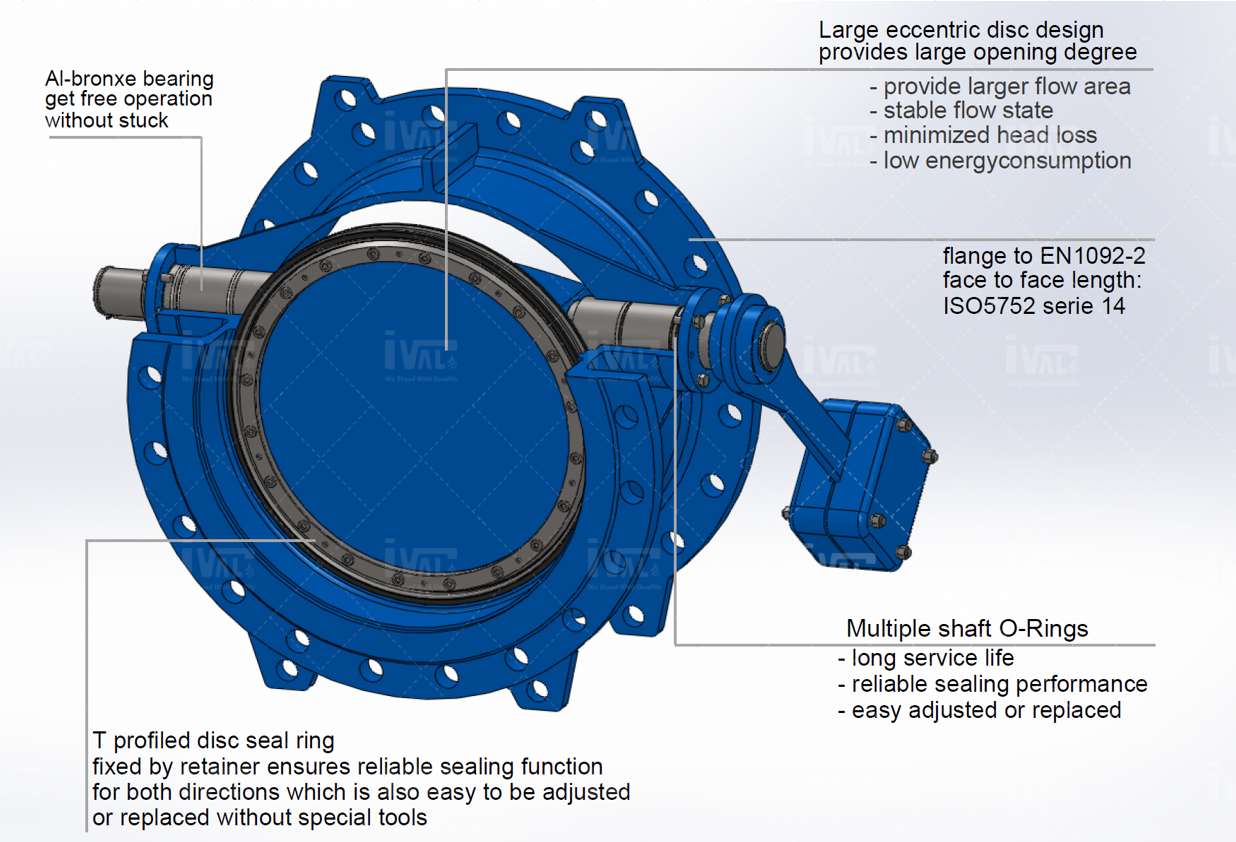

▪ 100% sealing- self-adjusting elastomer seat attached to disc and retaining ring.

▪ bi-directional flow sealing with 1.1 x PN

▪ SS retaining ring fastened with A2-70 screws and extra dowel pins

▪ disc seat with high qualiy rubber, regains original shape

▪ reduced sensitivity for vavitation

▪ less contact area of disc seal when closing, and less stress during the opening disc

▪ Complete tightness - self-adjusting elastomer seat attached to the disc and the retaining ring

▪ easy maintenance and handling

Standards

▪ 100% tested to EN 12266-1

▪ Confirm to BS EN 12334 resilient seated

▪ Flanges to EN-1092/2, BS4504

▪ EPDM disc seat ring to EN 681-1

▪ Face to face: EN558-1, series 14

Applications

▪ water and neutral liquid pipe system

▪ water distribution/transmission system

▪ cooling water system

▪ industrial waste water
