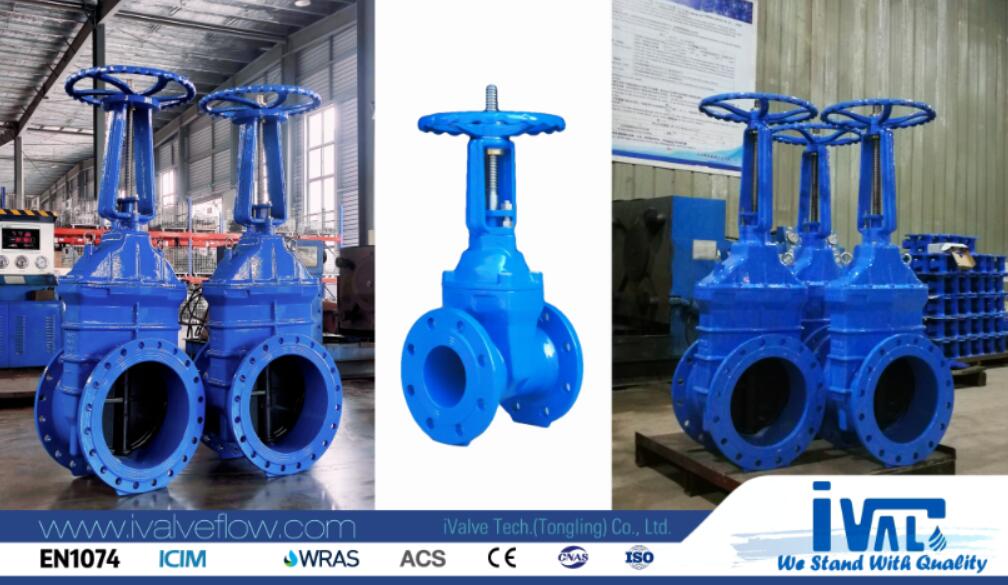

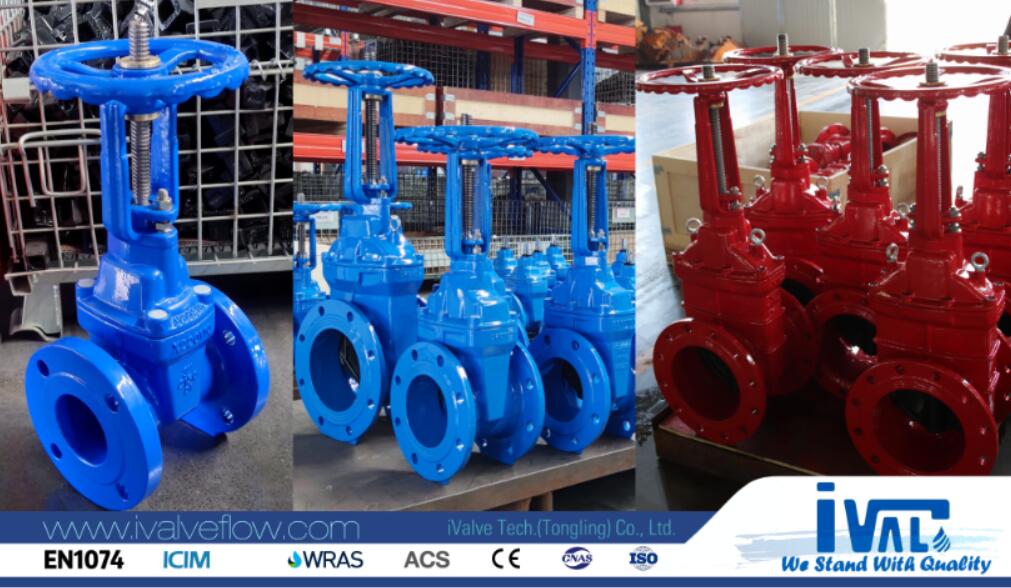

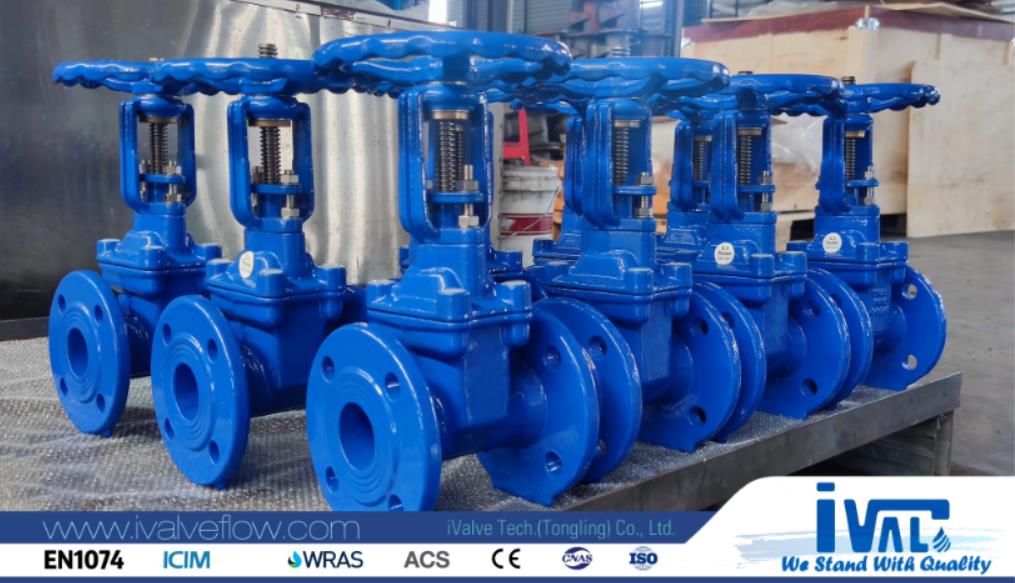

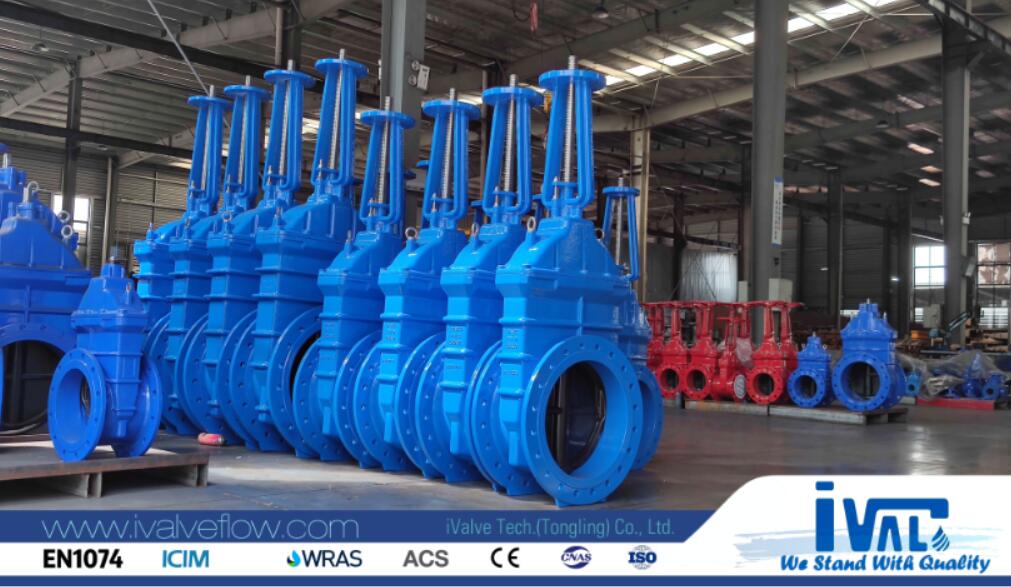

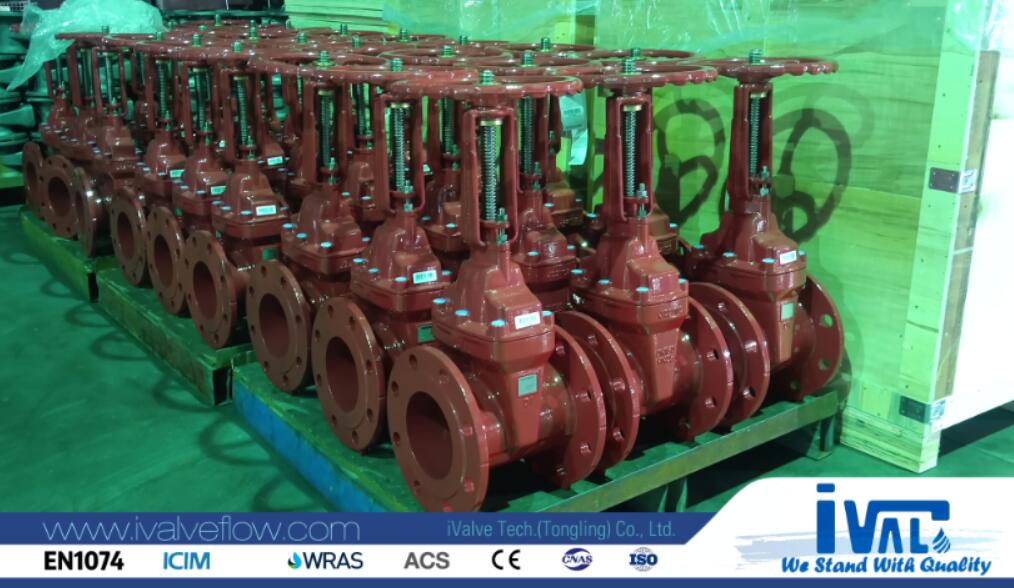

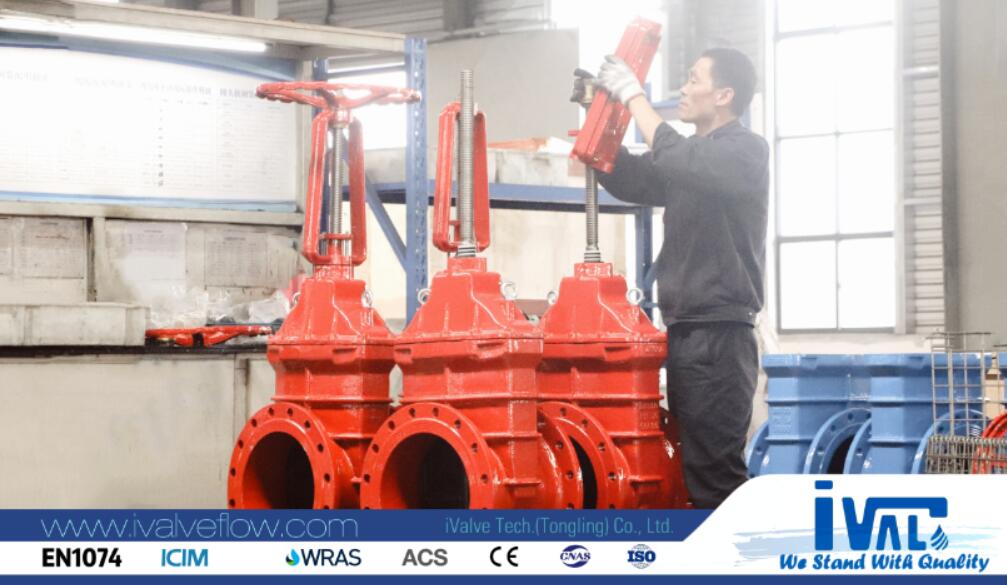

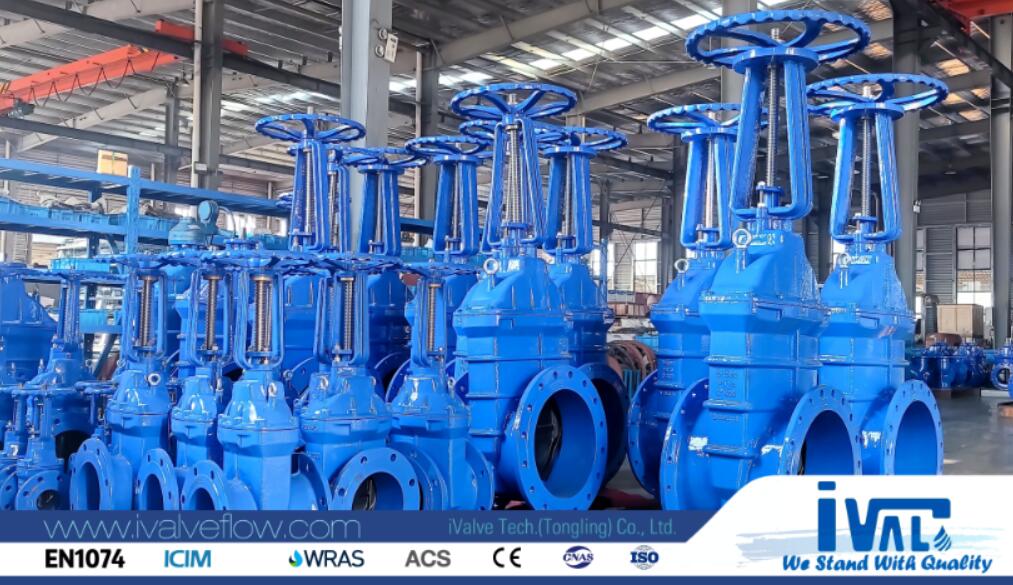

Rising Stem Resilient Seated Gate Valve





Description

Resilient Seated Gate Valve Rising Stem OS&Y serve to cut the medium flow in the piping system, widely used in the field of potable water, water supply and drainage, sewage disposal, irrigation, fire protection as well as chemical and energy industry.

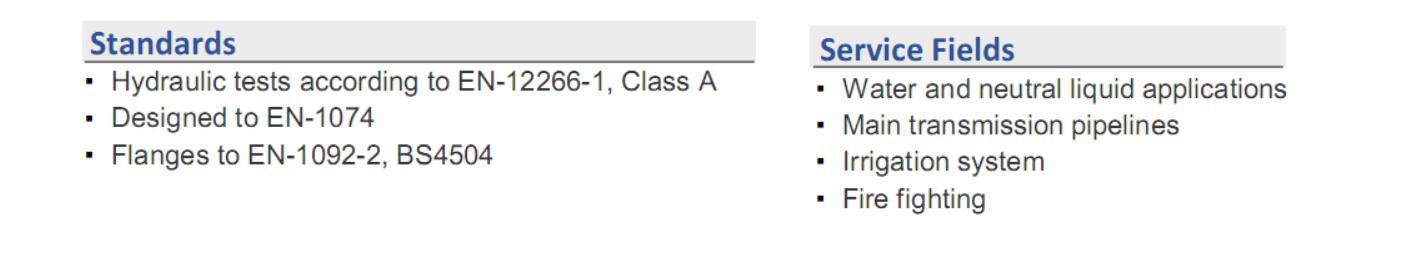

Design
EN 1171
Flange EN 1092-2
Face to Face EN558-1 Series 3/14/15
Tests
EN 12266-1
Operation  Handwheel
Medium Water
Temperature 0-80℃
Seal Test 11/18/28Bar
Body Test 15/24/38Bar
PN 10/16/25Bar
DN DN40-DN500




Features:

 Clockwise closing (CWC) as standard, anticlockwise closing upon request.

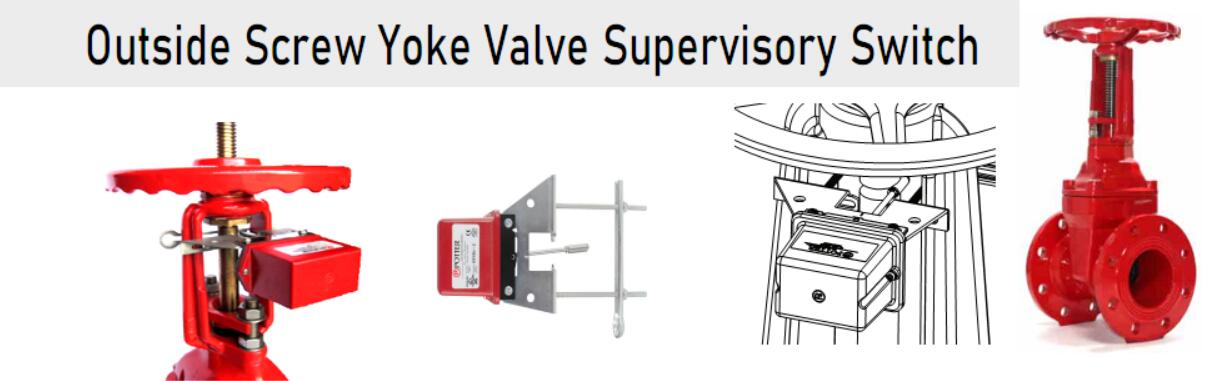

   Operation: Hand wheel,Gearbox,Electric actuator

 Bonnet bolts are in Galvanized Carbon Steel, and sealed with hot melt to prevent corrosion. Other materials upon request.

 Gland bolts are in SS304 to prevent corrosion.

 O-ring bonnet gasket wraps each bolt to prevent corrosion.

 100% testing before packing and delivery





Liner Sealing face – to get lower operate torque.





Position “A”:

Most factories’ design is the same lever sealing face.

while when the valve closed, the increasing inlet pressure will image.pngpush the disc shift and press the valve body, which will cut thedisc rubber of position “A” during long term use.

IVALVE has been aware of this defect and improve the design to avoid the hurt mentioned above,and by the new design,thedisc service life has been extended.

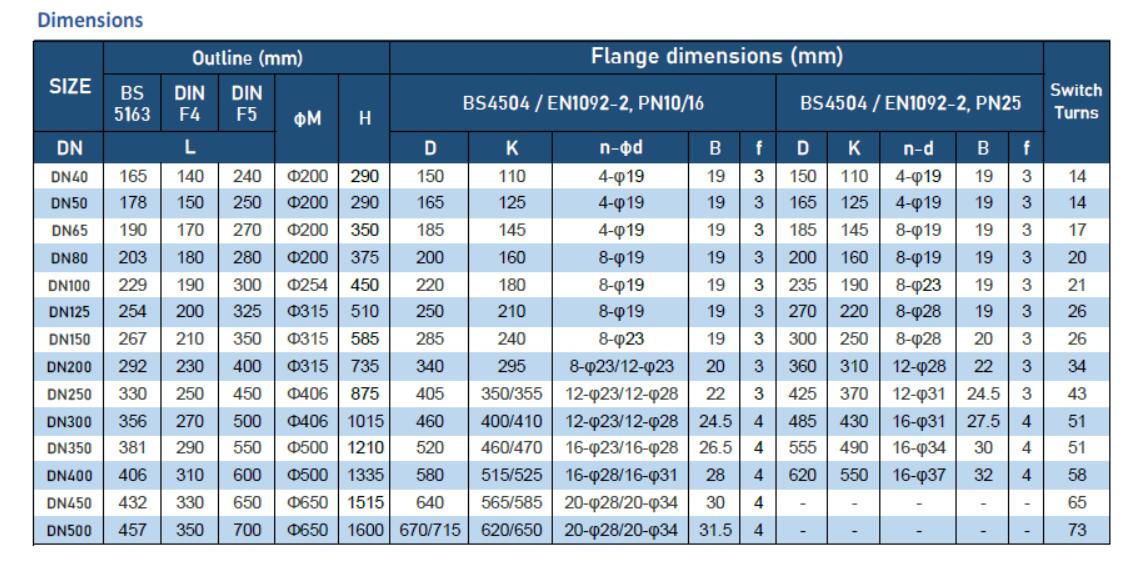

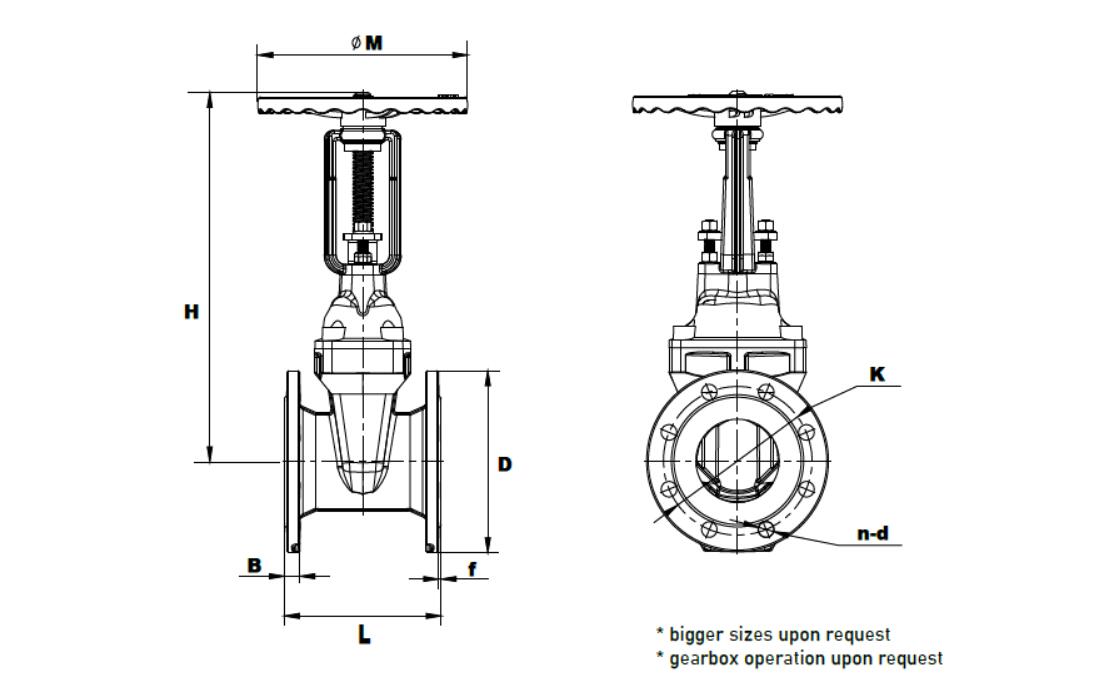

Technical Data

Attention:

1.The valve is installed independent of the flow direction of the medium.

2. After the valve is assembled, the thread of the bolt/stem shall be greased to prevent corrosion and facilitate subsequent disassembly.

3. Do not use the valve for pipe pressure regulation, gate valves generally play the role of a switch, to achieve a good adjustment effect, it is recommended to choose a professional regulating valve, water erosion will affect the service life of the valve disc.

4Do not use valves with EDPM for gaseous fluids.


Installation instructions

1. Notice of water stop shall be issued before construction.

2. The water in the road should be avoided in the front row of construction.

3. Electricity for construction must be guaranteed.

4. It is strictly prohibited to use hand wheel, handle and transmission mechanism for hoisting and collision is strictly prohibited.

5. Lubricate the valve at least once a month if it is in frequent use.
