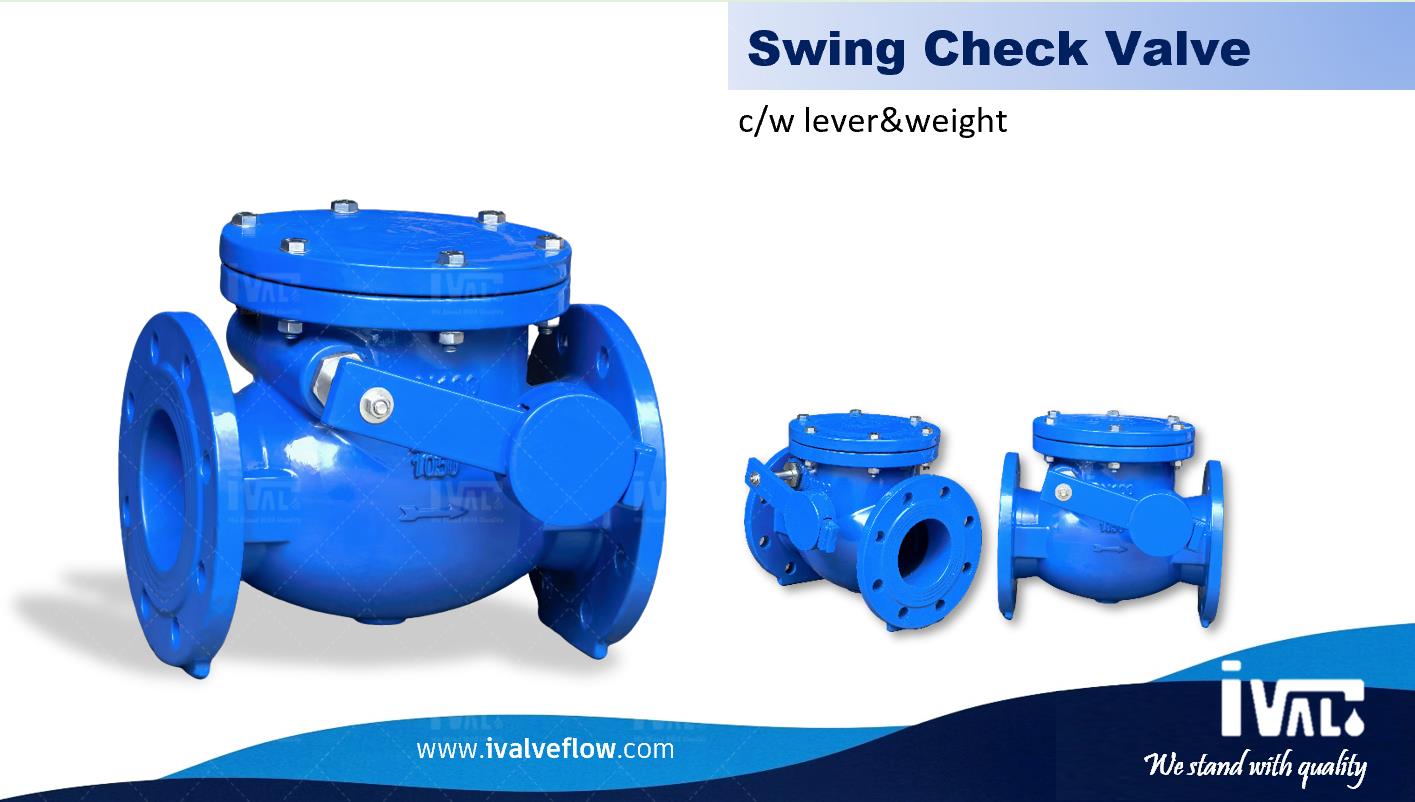

Swing Check Valve



Swing check valve is mounted with a disc that swings on a hinge or shaft. The disc swings off the seat to allow forward flow and when the flow is stopped, the disc swings back onto the seat to block reverse flow.

IVALVE swing check valves are available in both resilient and metal sealing. It’s normally recommended for water and wastewater systems applications because of the simple construction, low pressure drop across the valve, and field service ability.

Design AWWA C515
Flange ASME B16.1/16.42
Face to Face
BS 5153
Tests EN12266
Operation Self-motion
Medium Water
Temperature 0-80℃
Seal Test 11/18Bar
Body Test 15/24Bar
PN 10/16Bar
DN DN40-DN400

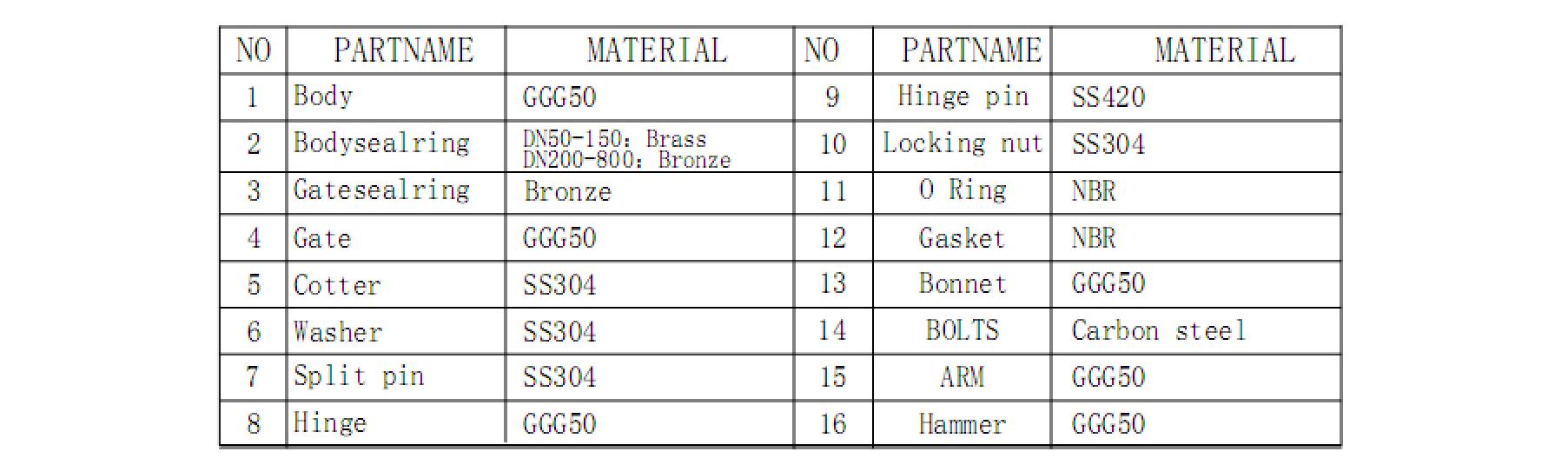

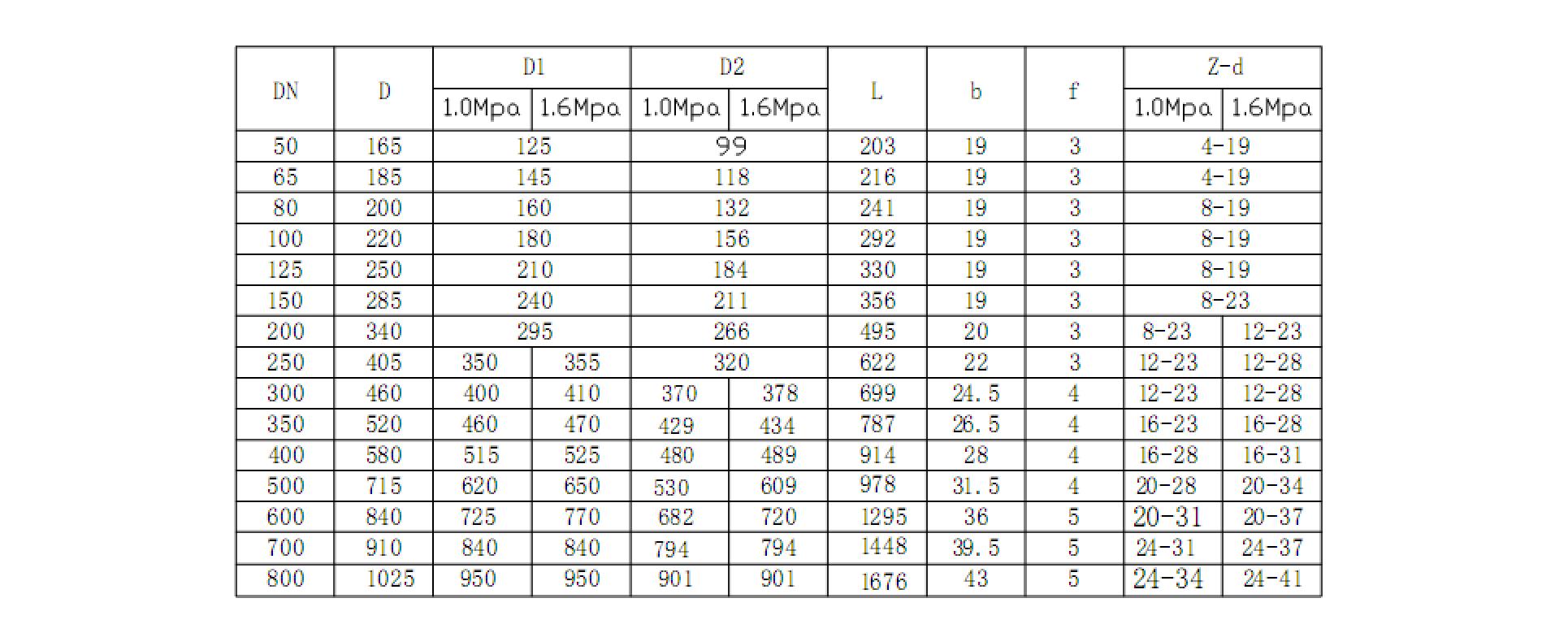

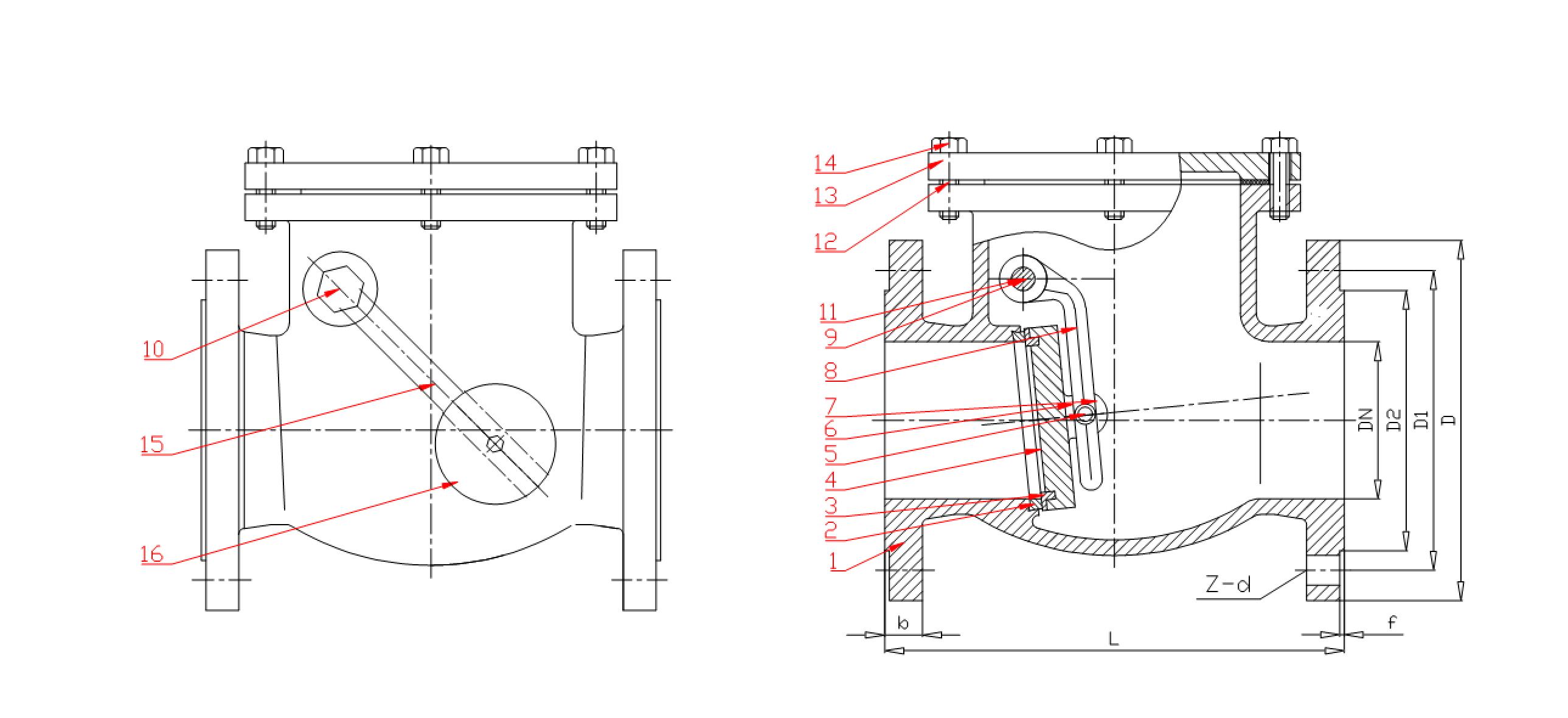

Technical Data
